River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch

Name: River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch
Brand: JIN MENG
Price: 500000 USD

China River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch wholesale

Brand Name : JIN MENG

Model Number : JMD450

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : $500000-$800000

Payment Terms : T/T

Supply Ability : 10sets/year

Delivery Time : 30days

Packaging Details : Bulk

Name : River port desilting cutter suction dredger

Type : Cutter suction dredger

Power Source : Diesel

Fuel Tank Capacity : Up to 1000 liters

Discharge Diameter : Up to 500 mm

Discharge Distance : Up to 2000 meters

Dredging Depth : Up to 12 meters

Control System : Remote control

Suction Diameter : Up to 550 mm

Dredging Pump Type : Shijiazhuang

Contact Now

River Port Desilting Cutter Suction Diesel Dredges 2500m³ 18inch

Product Specifications

Name	River port desilting cutter suction dredger
Type	Cutter suction dredger
Power Source	Diesel
Fuel Tank Capacity	Up to 1000 liters
Discharge Diameter	Up to 500 mm
Discharge Distance	Up to 2000 meters
Dredging Depth	Up to 12 meters
Control System	Remote control
Suction Diameter	Up to 550 mm
Dredging Pump Type	Shijiazhuang

Product Overview

The 2500m³ 18inch River Port Desilting Cutter Suction Dredger with Diesel Engine is a high-performance dredging solution designed for efficient sediment removal in river and port environments. Manufactured by Weifang Jin Meng Dredger Co., Ltd., this equipment combines robust construction with advanced dredging technology.

Key Features

Available in self-propelled or non-self-propelled configurations
Modular, box-like hull structure for easy transportation and assembly
Flexible power options: electric system or diesel engine driving system
Efficient cutter head design for optimal sediment cutting and slurry creation
Comprehensive hydraulic system with international components
Advanced SIEMENS PLC operating system for precise control

Technical Specifications (JMD450 Model)

Dredging Pump	Shijiazhuang
Discharge Pipe Diameter	450mm
Head	55m
Max. Working Capacity	400m³/h
Discharge Distance	1500m
Dredging Depth	12m
Diesel Engine	746KW Cummins
Emergency Generator	16KW WEICHAI
Total Power	762KW
Oil Consumption	115L/H
Hull Dimensions (L×W×D)	37m × 6.9m × 1.8m
Cutter Head	Φ1500mm crown-like, 100KW power

Applications

This cutter suction dredger is specifically designed for:

River dredging and desilting operations
Channel maintenance and deepening
Land reclamation projects
Sand dredging in rivers, brackish water, and calm sea conditions

Operation Process

The dredger operates by cutting underwater sediment with its rotating cutter head, creating a slurry mixture that is pumped through the discharge pipeline to the designated disposal area. The complete system includes traversing devices, cutter ladder lifting mechanisms, spuds, and deck cranes for comprehensive operation control.

Product Gallery

River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch

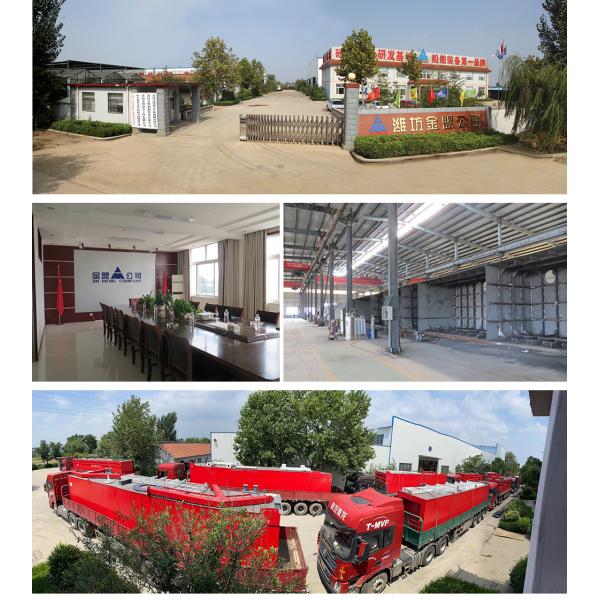

Manufacturing Facility

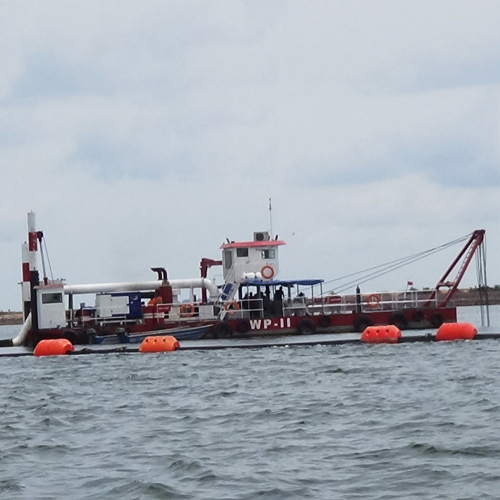

JMD450 Dredger Working Site

Dredging Operation Detail

Installation Procedure

Operator Training

Contact Information

For more information about our River Port Desilting Cutter Suction Dredgers, please contact our sales team.
